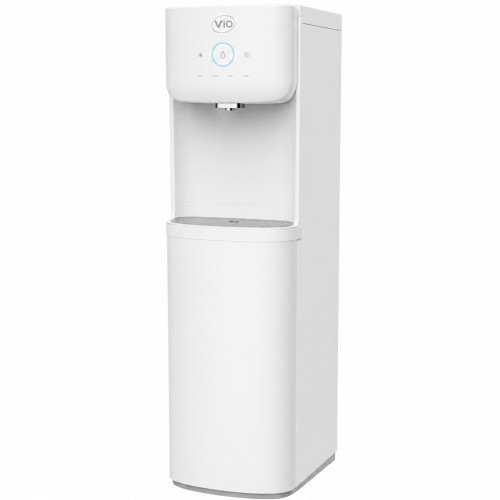

ViO P04 FCS-RO — Reverse Osmosis Water Purifier with Compressor Cooling and Carbonation Function

ViO P04 FCS-RO is a modern floor-standing water purifier that combines multi-stage water purification, heating, cooling, and carbonation in a single unit. Thanks to its direct connection to the mains water supply, it provides continuous access to purified drinking water and helps reduce the need for bottled water.

Its elegant design, touch controls, and well-thought-out construction make this model a convenient solution for offices, restaurants, cafés, hotels, healthcare facilities, retail spaces, and other locations with regular water consumption. ViO P04 FCS-RO provides hot, cold, room-temperature, and freshly carbonated water to meet users’ everyday needs.

Four Types of Water from One Unit

The purifier provides a convenient choice of water for different needs:

• Hot water — for preparing tea, coffee, and other hot beverages.
• Cold water — for refreshing hydration throughout the day.
• Room-temperature water — for everyday drinking without additional heating or cooling.
• Carbonated water — for those who prefer sparkling water with CO₂ bubbles.

The carbonation function allows you to enjoy freshly carbonated water without the need to constantly purchase separate bottles. The system uses a food-grade CO₂ cylinder.

4-Stage Reverse Osmosis Purification System

ViO P04 FCS-RO is equipped with a filtration system in which water passes through four consecutive stages:

PP → CTO → RO → T33

Each cartridge performs a specific function, and together they provide comprehensive water treatment for drinking.

1. PP — Mechanical Filtration. The polypropylene cartridge traps sand, rust, silt, and other insoluble particles. This helps reduce the load on subsequent filtration stages.

2. CTO — Carbon Filtration. The Carbon Block cartridge made of compressed activated carbon helps reduce residual chlorine, organic compounds, and substances that affect the taste and odor of water. Pre-carbon filtration also helps protect the RO membrane.

3. RO — 150 GPD Reverse Osmosis Membrane. This is the main stage of deep water purification. The semi-permeable membrane helps reduce dissolved salts, hardness-causing minerals, heavy metal compounds, nitrates, and other impurities. Purification efficiency depends on the composition of the feed water, pressure, temperature, and operating conditions.

4. T33 — Post-Carbon Filtration. The final cartridge improves the organoleptic properties of purified water by helping remove unwanted odors and tastes before the water is dispensed.

How Does Reverse Osmosis Work?

Reverse osmosis is a membrane purification technology in which pressurized water passes through a semi-permeable membrane. The membrane allows water molecules to pass through while retaining a significant proportion of dissolved impurities, which are discharged to the drain together with the concentrate.

This process makes it possible to obtain water with significantly reduced levels of many contaminants without adding chemical reagents directly during the membrane purification process.

Touch Controls and Well-Designed Construction

The purifier features a modern touch control panel that makes it easy to select the desired water dispensing mode. The absence of traditional mechanical taps in the control area makes the unit convenient to use and simplifies surface maintenance.

A removable drip tray makes it easier to clean the water dispensing area. The lower magnetically attached door provides quick access to the filter elements during routine maintenance.

Compressor Cooling and Efficient Heating

The compressor cooling system ensures a stable supply of cold water even with regular use. A separate heating system provides quick access to hot water for preparing beverages.

Thanks to its combination of different temperature modes, ViO P04 FCS-RO is suitable both for individual use and for locations with a constant flow of visitors or employees.

Advantages of ViO P04 FCS-RO

• Four types of water: hot, cold, room-temperature, and carbonated.
• 4-stage purification system: PP → CTO → RO → T33.
• 150 GPD reverse osmosis membrane.
• Direct connection to the mains water supply.
• Compressor cooling.
• Touch control panel.
• Removable drip tray for easy maintenance.
• Removable magnetically attached door for easy access to the filters.
• Modern design and compact floor-standing construction.
• Helps reduce the use of single-use plastic bottles.
• A convenient solution for offices, HoReCa establishments, and commercial premises.

Main Technical Specifications

Maintenance and Cartridge Replacement

To maintain effective water purification, the filter elements should be replaced in a timely manner according to the manufacturer’s recommendations. Maintenance intervals depend on the quality of the feed water, intensity of use, and the actual service life of the cartridges.

The system uses the following replaceable filter elements: ViO PP-10TW, ViO CTO-10TW, ViO RO150-10QC, and ViO T33-10TW. Convenient access to the filters simplifies scheduled cartridge replacement and routine purifier maintenance.

ViO P04 FCS-RO — A Modern Approach to Drinking Water

ViO P04 FCS-RO combines reverse osmosis water purification, convenient dispensing of water at different temperatures, and a carbonation function. It is a practical solution for those who value convenience, modern design, and continuous access to drinking water without the need to store and regularly replace heavy water bottles.
